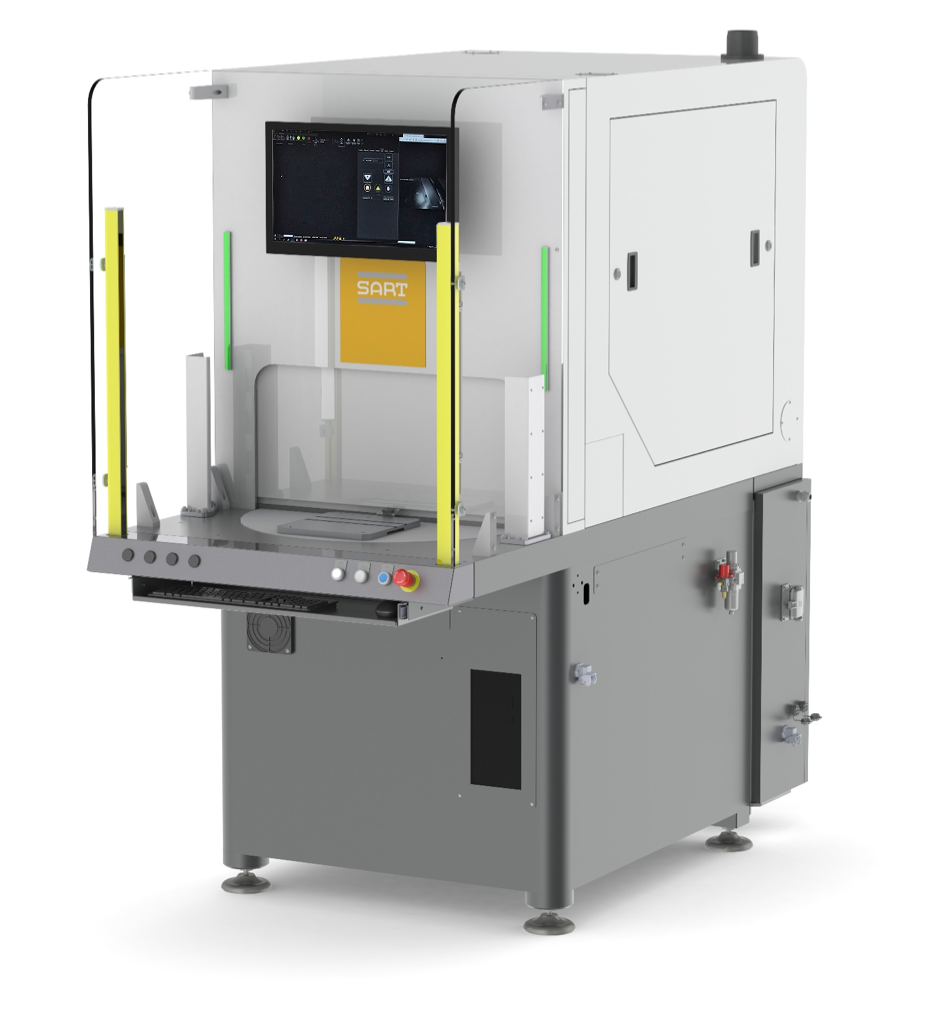

SART, laser marking and engraving system with rotating table, on base.
Highly productive:
The two-position rotating table system (diameter 700 mm) allows to load/unload the pieces during the marking process, minimizing downtimes. Furthermore, the sturdy structure guarantees repeatability and stability of results over time.

Functional:
The ergonomic structure enables a comfortable operator position while the integrated software, developed by SISMA, allows to carry out very complex operations in an easy and intuitive way.

Flexible:
SART is available with wide range of SISMA laser sources (from 3 W to 50 W) and can be fitted, on request, with a rotating axis. It is also compatible with the coaxial vision system (CVS), the Pattern Matching software and the Focus Shifter scanning head for 3D surface marking.

אפשרויות

High precision rotary axis
High accurate vision system
Pattern matching solution
Fixtures design and manufacturing
Software UI customized

יצרן: Sisma SPA, Italy

X
Medium Rotary Table – SART
Medium Rotary Table – SART
Medium Rotary Table – SART
Medium Rotary Table – SART
  • Medium Rotary Table – SART
  • Medium Rotary Table – SART
  • Medium Rotary Table – SART
  • Medium Rotary Table – SART
Website

קישור לאתר המוצר: www.sisma.com/en/products/sart/

Website
  • מידע טכני

    • Laser source Fiber laser (Yb)
    • Wavelength 1064 nm / GREEN / UV
    • Average laser power 20 W / 30W / 4OW / 50W / 70W / 100W
    • Pulse frequency 1÷500 kHz
    • Pulse duration 260/40 ns (EP - 500/3 ns)
    • Max pulse energy 1/0,21 mJ
    • Beam quality ≤ 1,6 M²
    • Laser spot diameter 20 µm
    • Max marking speed 2000 mm/s
    • Focal lenses F100, F160 (standard), F254, F330
    • Table Size (Diameter) Ø 700mm
    • Max working area 300 mm x 300 mm x 250 mm
    • Dimensions (WxDxH) 50 mm (1900 mm with monitor support) x 1570 mm x 1830 mm (2400 mm with open door)
    • Weight (Kg) 600 Kg
  • מדיה

    • SART with rotary axis Play

      SART with rotary axis
