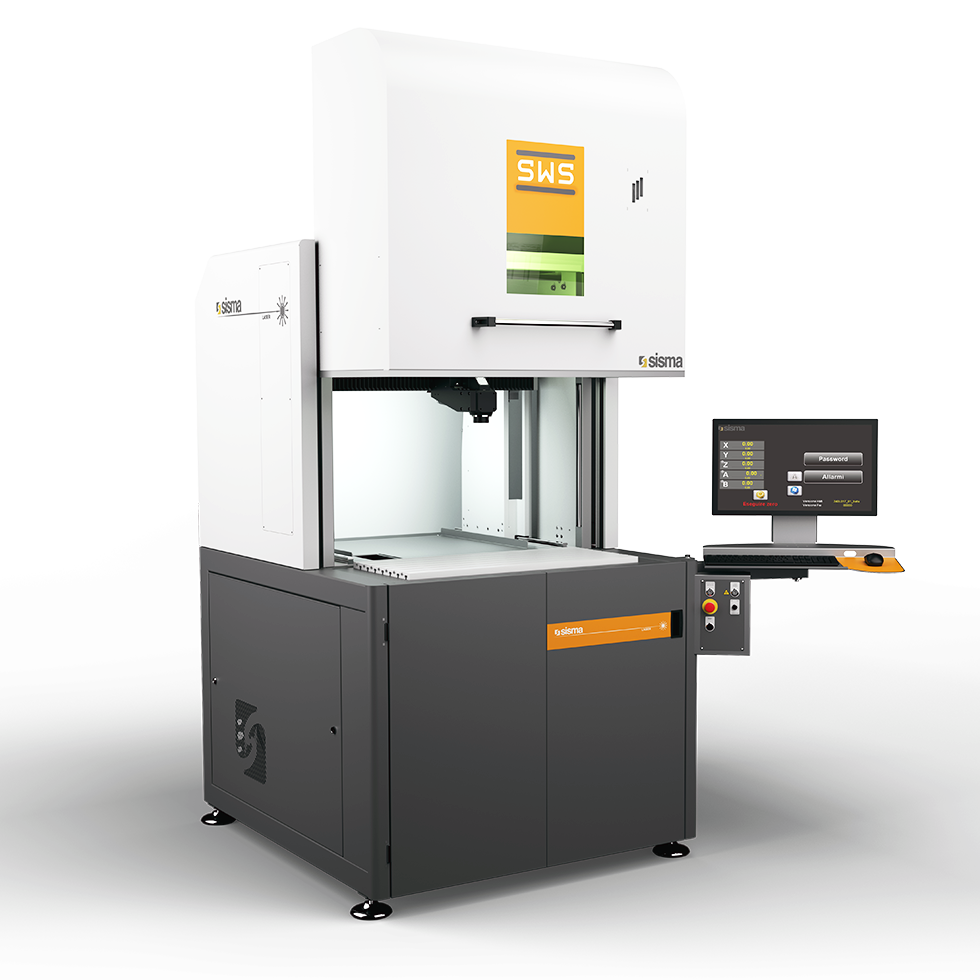

    SWS, automatic 3 or 4 axis CNC laser welding station.
    Solid and accurate
    The axes movement system ensures high precision thanks to the solid structure and the materials used.

    The laser source has been designed to guarantee high operating stability both at low and high power.

    The machine is equipped with a 21” screen PC and dedicated SISMA user interface.


    אפשרויות

    Video Camera
    Micro Spot (0.1mm)
    Wire feeder
    Fume extraction

    יצרן: Sisma SPA, Germany

    X
    SWS
    SWS
    SWS
    SWS
    • SWS
    • SWS
    • SWS
    • SWS
    Website

    קישור לאתר המוצר: www.sisma.com/en/products/sws/

    Website
    • מידע טכני

      • Laser source type Nd:YAG or Fiber Laser Pulse or CW
      • Max. mean power 25W-300W(ND:YAG), 150W-450W (fiber)
      • Pulse peak power 7.5 kW - 12KW
      • Max. pulse energy 70J - 150J
      • Pulse duration 0,4 - 20 ms
      • Pulse frequency 0,5 - 50 Hz
      • Travel Z Z axis: 400mm (Head)
      • Travel X Y X-axis: 520 mm / Y-axis: 400mm
      • Axes precision ± 60 µm
      • Axes repeatability ± 30 µm
      • Weight 540 kg
      • Dimensions 1200 x 1350 x h 2000 mm
      • Power supply 1ph 230 V or 3ph 400V
