LWS-A 3/4 Axis
Applications

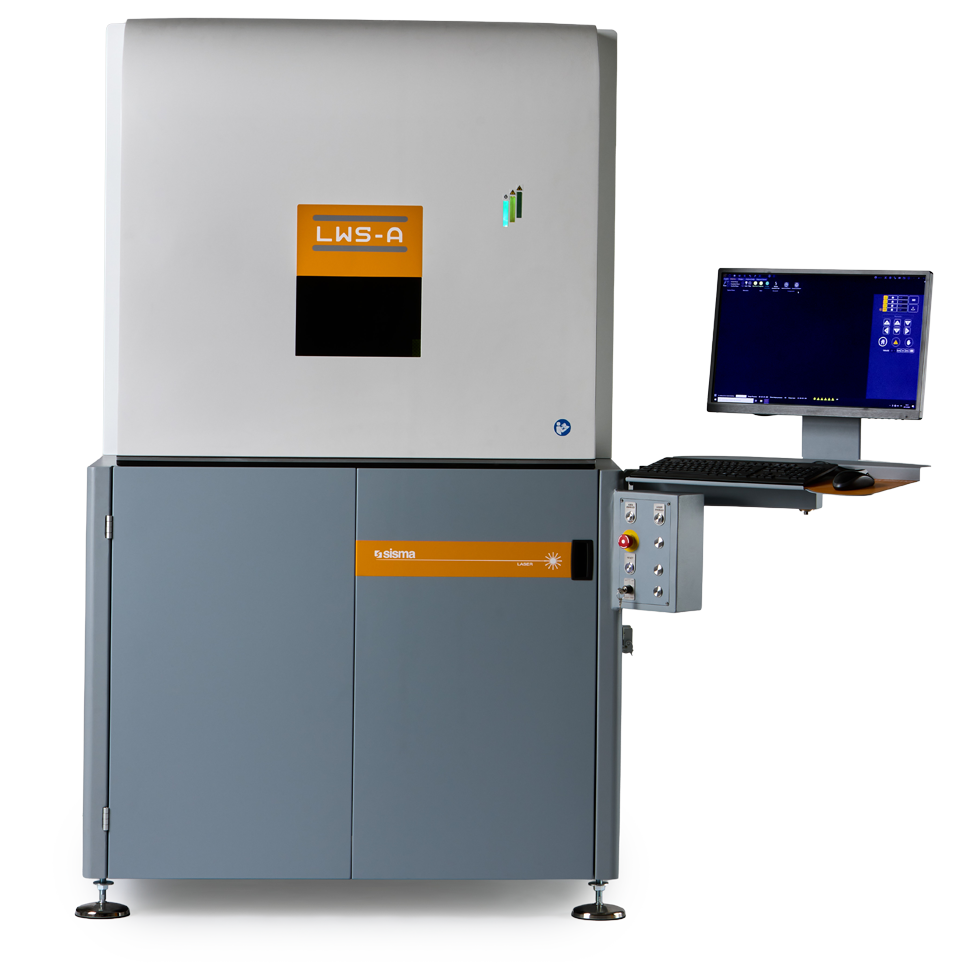

The LWS-A is a highly flexibile 3 axis laser marking machine with big working area, ideal for mid quantity production with
FLEXIBILITY:
The portal construction, open on three sides, and the possibility to lower or remove the working plane allow to mark big and heavy pieces.
LWS systems are highly customizable to meet every specific need, like automatic processes.
MODULARITY:
Possibility to integrate several standard features like rotary axis, rotation of marking head to adjust marking angle and the Coaxial Vision System, ideal for high precision and automatic processes.
ROBUSTNESS & USABILITY:
The solid structure allows for repeatable results over time; the ergonomic design, with attention to technical and aesthetic details, and the user-friendly software (developed by Sisma) make LWS systems easy to use even when performing complex marking processes.
Options
High precision rotary axis
High accurate vision system
pattern matching solution
Clamping devices
Manufacturer: Sisma SPA, Italy
Technical Data
- Laser source Fiber laser (Yb)
- Wavelength 1064 nm / GREEN / UV
- Average laser power 20 W / 30W / 4OW / 50W / 70W / 100W
- Pulse frequency 1÷500 kHz
- Pulse duration 260/40 ns (EP - 500/3 ns)
- Max pulse energy 1/0,21 mJ
- Beam quality ≤ 1,6 M²
- Laser spot diameter 20 µm
- Max marking speed 2000 mm/s
- Focal lenses F100, F160 (standard), F254, F330
- Z axis 500mm motorized
- X, Y axes X: 520 mm, Y: 400 mm, motorized
- Dimensions (WxDxH) 1350 mm x 1200 mm x 2050 mm (2650 mm open)
- Weight 500 Kg
