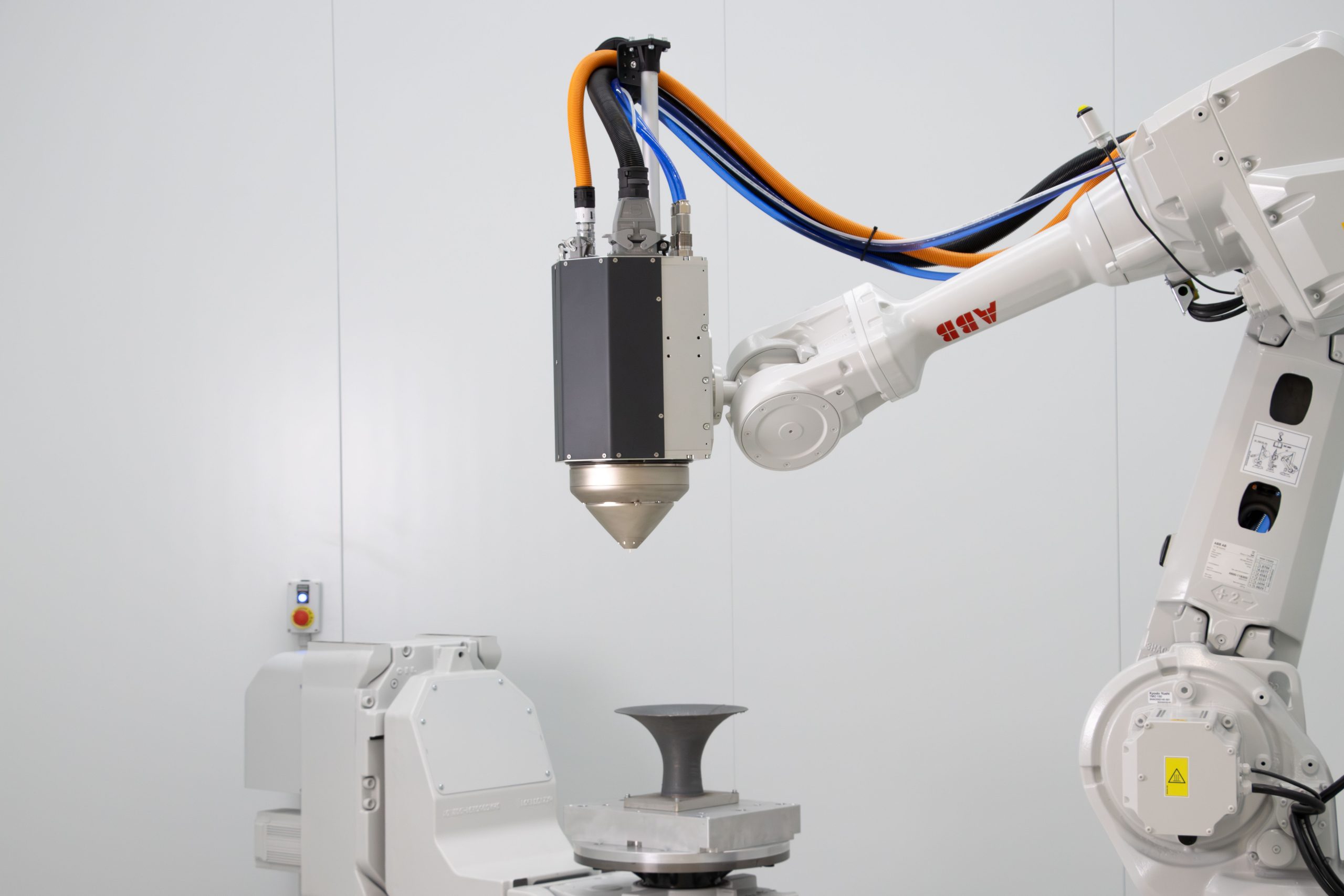

Meltio Robot Cell – Robotic Metal 3D Printing Solution

The Meltio Robot Cell is a turnkey system that combines Meltio’s wire-laser metal additive technology with industrial robotic motion, unlocking the ability to manufacture large, complex, and multi-axis metal parts with unprecedented design freedom.

Designed for both production and research environments, the Robot Cell provides a safe, modular, and highly flexible platform for advanced Directed Energy Deposition (DED) applications.

Key Features

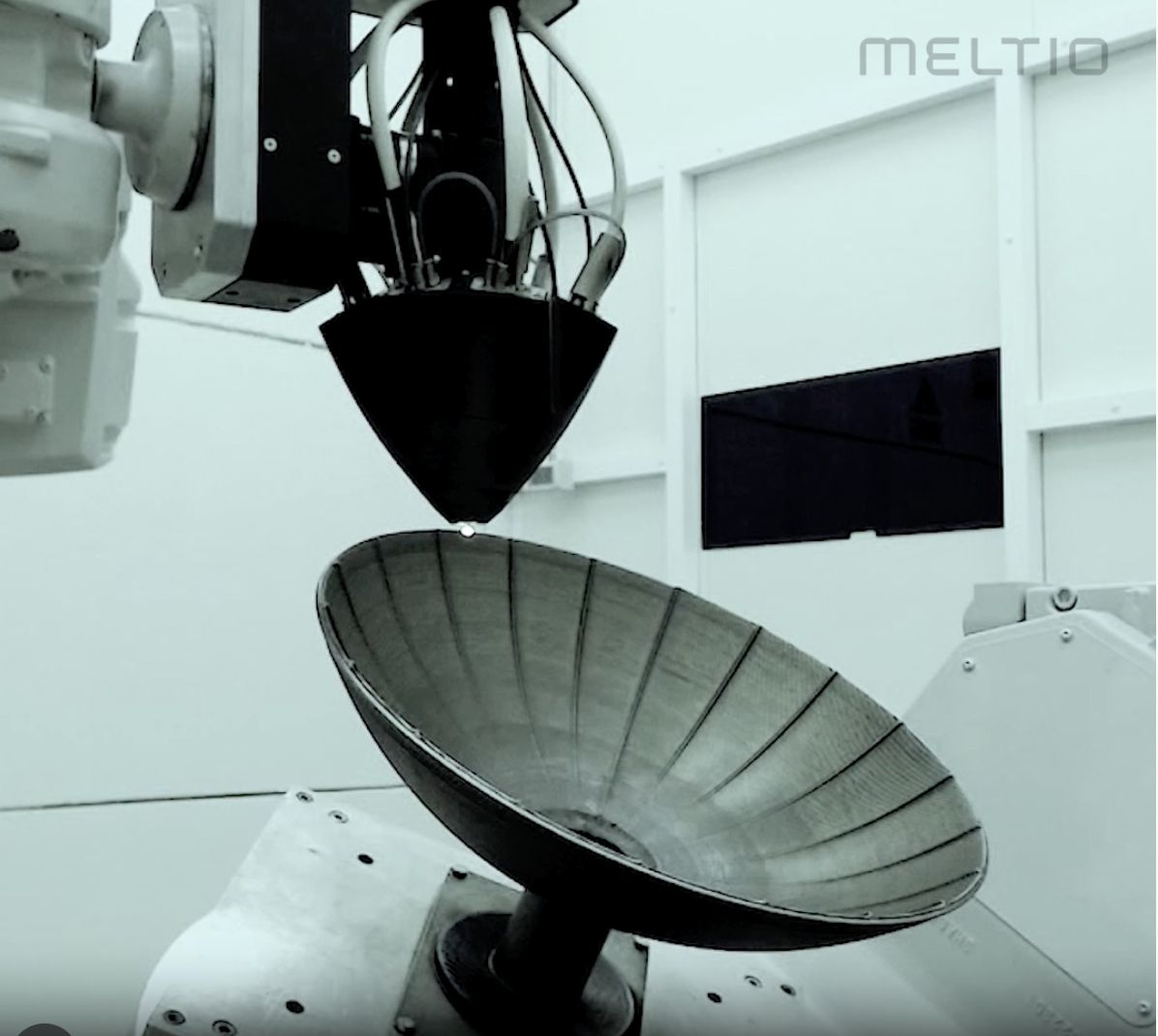

• Multi-axis 3D printing: Enables toolpath flexibility and non-planar printing, ideal for curved geometries, overhangs, and part repairs.
• Large build volume: Dependent on robot and positioner setup; typically used for parts over 1 meter in size.
• Turnkey enclosure: Fully enclosed and CE-certified cell with safety interlocks, gas handling system, filtration, and environmental control.
• Seamless integration: Pre-integrated Meltio Engine with industrial robotic arms (e.g., ABB, KUKA, FANUC, Yaskawa).
• Dual wire feeding: Optional setup for multi-material or compositionally graded structures.
• Automated process control: Real-time monitoring of laser, wire, temperature, and deposition variables for repeatable quality.

Options

Applications:
• Large structural components
• Aerospace and defense parts
• Tool and die refurbishment
• Research in multi-material or functionally graded parts
• Hard-to-machine geometries or exotic alloys

The Robot Cell provides the flexibility of robotic motion with the precision of Meltio’s wire-laser process, making it ideal for industry 4.0 factories, innovation centers, and metal additive production lines.

Meltio Space Software:
This toolpath generator software is specifically developed for accelerated adoption of Meltio technology, revolutionizes the field of robotic additive manufacturing. With its intuitive design, users can quickly adapt to and leverage the benefits of robotic additive manufacturing without requiring expertise in robotics or programming.

Manufacturer: MELTIO
